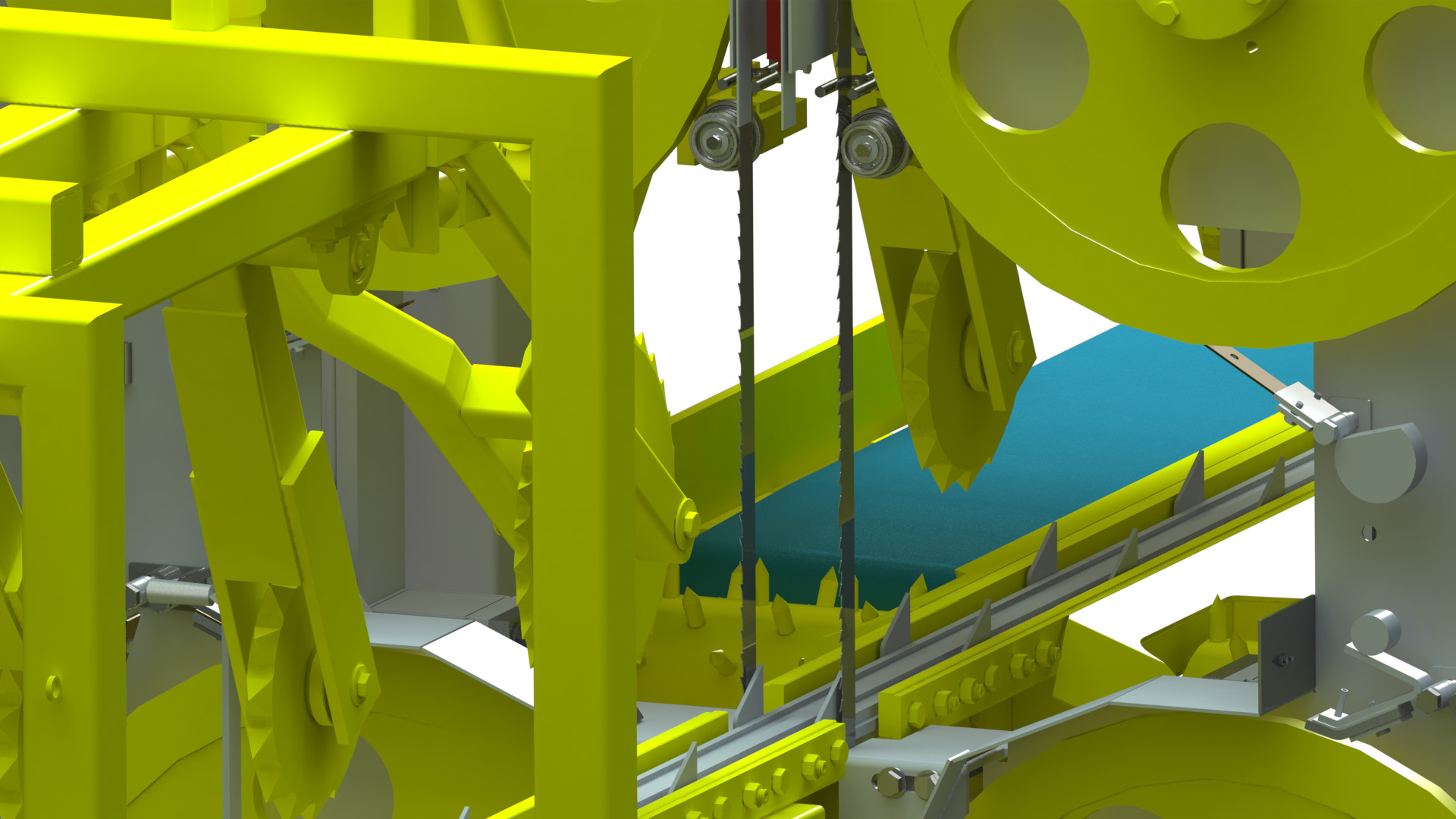

Twin Band Saw

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

  • Ideal to cut pine, eucalyptus and teak.
  • High-precision cutting.
  • Laterally-supported and adjustable chain.
  • High-production continuous feed system.
  • Produces up to 4,000 m³ per month.
  • Highly efficient use of wood, with the thinnest kerf on the market.
  • Motorization and control panel included.
  • Automatic feed (Log positioner optional).

Options

  • Automatic log positioner.
  • Equipment for logs longer than 3m.
  • Automatic Width Adjustment.
  • Pneumatic assisted feed rollers.

Video

TECHNICAL SPECIFICATIONS M/PRO G/FORCE
Maximum Log Diameter 460 mm 700 mm
Minimum Log Diameter
(90mm chain conveyor)
120 mm 120 mm
Minimum Log Diameter
(110mm chain conveyor)
140 mm 140 mm
Wood Length 1,000 to 3,000 mm 1,000 to 3,000 mm
Feed Speed 9 to 27 m/min (Inverter) 9 to 27 m/min(Inverter)
Estimated Production up to 3,000 m³ up to 4,000 m³
Length 9,700 mm 9,700 mm
Height 2,480 mm 3,010 mm
Width 2,645 mm 2,980 mm
Weight 4,200 Kg 4,750 Kg
Saw Motor 2 x 25 HP 2 x 30 HP
Conveyor Motor 5 HP 5 HP
Width Adjustment Motor 1 HP 1 HP
Switch Gear Automatic eletronic panel Automatic eletronic panel
Eletrical Cables Not included Not included
Width Saw Blade 32 mm (1.1/4") 63.5 mm (2.1/2")
Length Saw Blade 4,220 mm 5,700 mm
Saw Blade Thickness 0.9 – 1.1 mm 1.1 mm
Saw Kerf 1.7 mm 1.9 mm
Bandwheel Diameter 700 mm 900 mm
