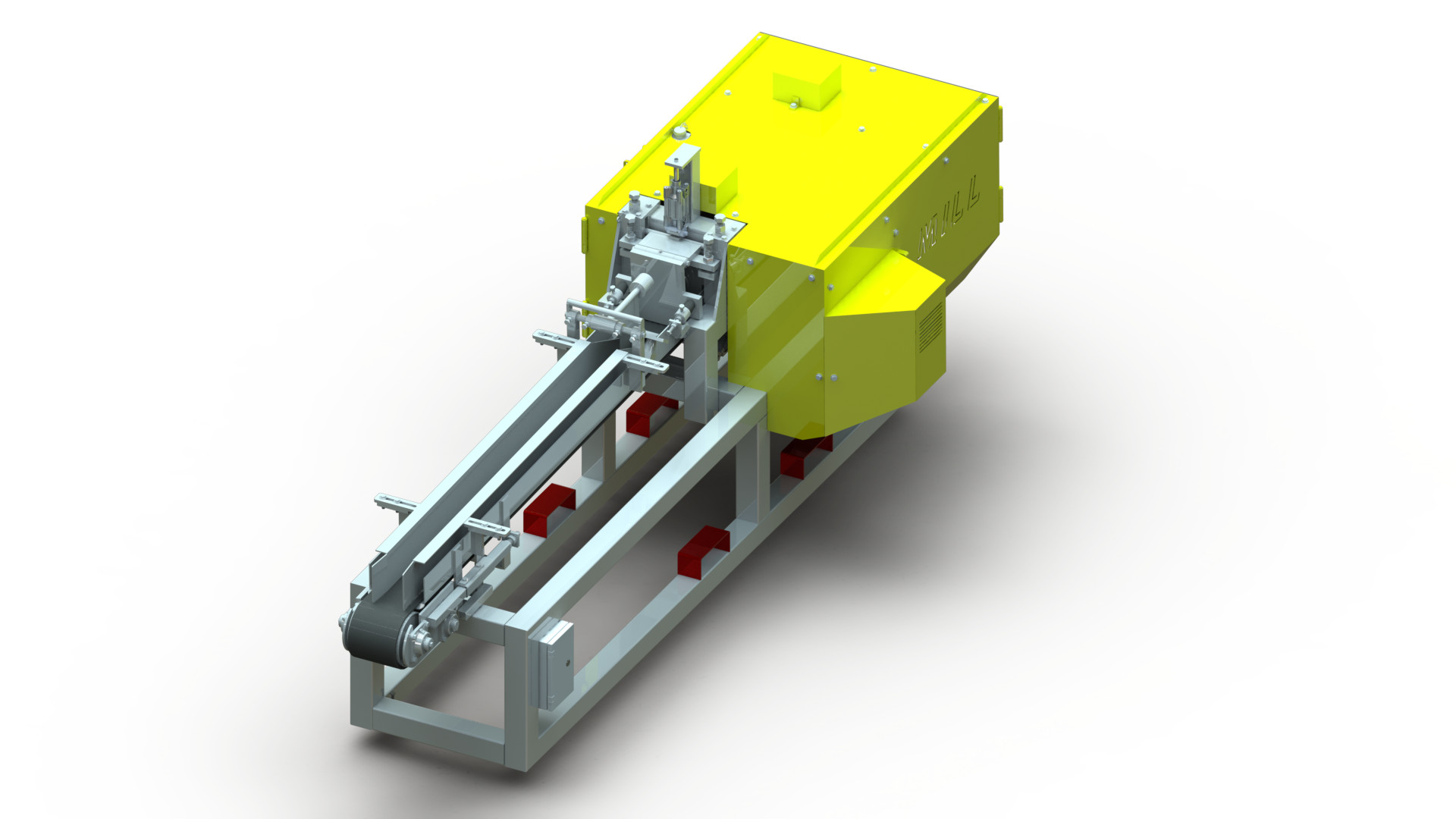

Sawdust Brushers

Designed to receive boards from the production line and clean sawdust from their surface, in addition to clearing splinters from the sides.

  • Ideal for the end of production lines.
  • Super reinforced.
  • Low maintenance.
  • High production, working 290 m/min.
  • 4 auto-adjustable brushes.
  • Motorization and automatic Electric panel.
  • Singulation of boards.

Options

  • Board division system allows for dual feeding.
  • For wood more than 3m in length.


TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATIONS 240 mm 350 mm
Feed Motor 01 x 5 CV 01 x 5 CV
Splinter Saw Motor 01 x 3 CV 01 x 3 CV
Number of Brushes 04 04
Production Varies Varies
Feed Speed 290 m/min 290 m/min
Length 4,450 mm 4,450 mm
Height 1,380 mm 1,380 mm
Width 1,010 mm 1,140 mm
Weight Varies Varies
Maximum Board Width up to 210 mm (8") up to 320 mm (12")
Maximum Board Length up to 3,000 mm up to 3,000 mm
Switch Gear Automatic Electric Panel Automatic Electric Panel
Electrical Cable - -
